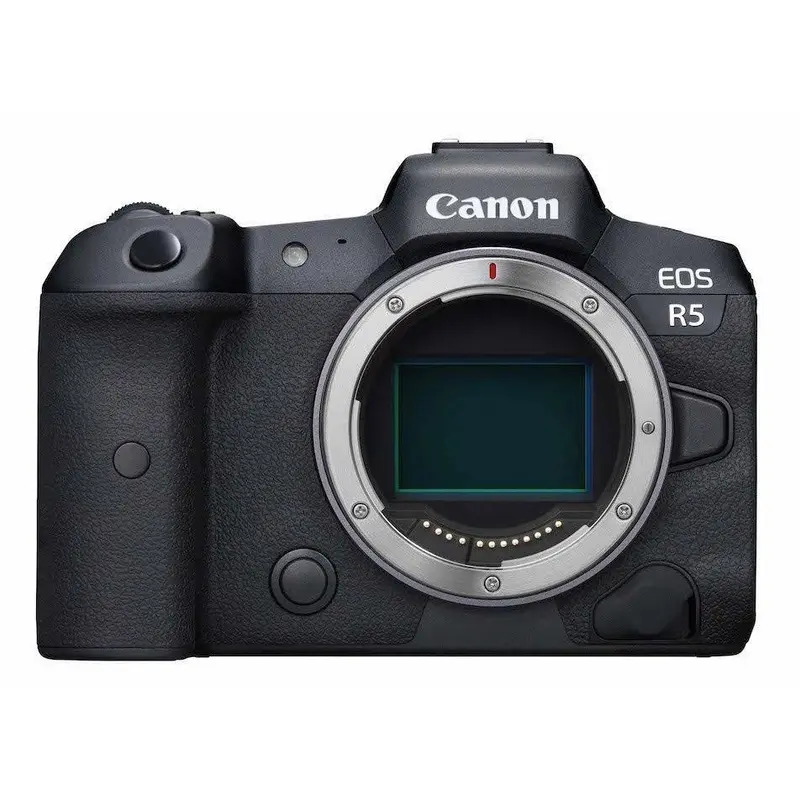

Canon EOS R5 Full-Frame Mirrorless Camera Body

MFRSKU:4147C002 | Helix SKU: CA4147C002

Overview

The EOS R5 builds off of the powerful legacy of Canons full frame cameras offering next generation refinements in image quality, performance and reliability. Its an ideal choice for a large range of photographic and cinematographic environments from weddings, portraits, sports, journalism, landscape, cinematography and more.

Canons all-new 45 Megapixel full-frame sensor is at the heart of the EOS R5s superb image quality, which also leads the way for impressive 8K DCI cinematic movie capture with theability to extract 35.4 Megapixel still images. Focus and speed are paramount in the EOS R5, providing impressive continuous capture at speeds of up to 20 frames-per-second and with Dual Pixel CMOS AF II capability, to track split second movements of eventhe most elusive of subjects. With 1,053 Automatic AF zones, it is easier than ever to photograph people with the use of Eye, Face and Head Detection AF, or intuitively track the whole body, face or eye of cats, dogs, or birds with Animal Detection*2AF. The 5-axis in-body image stabilization can effectively compensate for camera shake with approximately 8 stops of stabilization*with use of certain non-stabilized, and optically image stabilized lenses. Connectivity like 5GHz and 2.4GHz Wi-Fiand Bluetooth, is also included.

8K RAW, 4K up to 120fps, 10-bit 4:2:2 with Canon Log or HDR PQ, Internal Recording in all Formats, with Auto Focus.

With the high-speed processing capability of the DIGIC Ximage processor, the EOS R5 is ableto record 8K movies (uncropped, atup to 29.97 fps) a first for Canon full-frame mirrorless cameras. 4K video shooting is also possible at up to 119.9fps, in 4:2:2 10-bit (H.265) Canon Log, and Dual Pixel CMOS AF is available in all 8K and 4K modes. Image-makers worldwide will be able to tell their stories in larger-than-life resolutions. Additional new features include: Internally recorded and uncropped 8K RAW Recording up to 29.97 fps with Dual Pixel CMOS AF, and HDR-PQ Recording (H.265) capability.

In-body Image Stabilizer can provide up to 8 stops of Shake Correction*.

The EOS R5 is Canons first camera to incorporate 5-axis IBIS (In-Body Image Stabilization). This camera will not only enhance the ability to shoot still images at slower shutter speeds but it will also help reduce camera shake when shooting movies. Additionally, the EOS R5s IBIS will work in combination with Optical Image Stabilization found in many Canon RF and EF lenses.
*When combined with certain IS lenses such as the RF24-105mm F4 IS L USM, or when used with certain non-IS lenses as well.

Dual Card Slots for CF express**and UHS-II SD Memory Cards***

Whether you are shooting photos every day, or are recording 8K videos, the EOS R5 camera can capture an incredible amount of images through its super high-speed CF express dual card slots. Plus a UHS-II SD***card slot is also provided at your disposal.
**Type B compatible.
***Some types of data cannot be saved on the SD memory card.

0.5-type OLED EVF with Approx. 5.76 Million Dots

The EOS R5 camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 5.76 million dots and a 23mm eyepoint. Displaying a bright image and extensive shooting information that rotates with the camera. The EOS R5s EVF supports a 120 fps refresh rate^1and has been created to provide a bright, sharp and colorful 100% view of the subject at hand, displaying a crisp and vivid image with minimal aberration or distortion.
^1Display may be grainier.

Vari-angle Touchscreen LCD

The EOS R5 camera features a 3.15-inch, 2.1 Megapixel Clear View LCD II Vari-angle Touchscreen LCD. Its extensive flexibility makes it easy to compose and shoot from virtually any angle, making selfies simple and enablingthe LCD to fold away when not in use. The brightness of the EVF and the LCD monitor can even be adjusted individually. Touch screen features include settings, review and even AF point selection.

Dot-matrix LCD Panel

An LCD panel on the top of the camera features a dot-matrix display that shows information on the cameras status, recording mode and more. It gives real-time setting information both when the camera is in use or on standby, and can be inverted from black to white to suit viewing preferences or the ambient light source.

2.4/5 Ghz Built-in Wi-Fi^, Bluetooth^^Technology.

In addition to the traditional 2.4 GHz Wi-Fi^, the EOS R5 camera now supports 5 GHz Wi-Fi^communication a first for EOS mirrorless cameras. Users can easily perform high-speed FTP data transfer between the camera and using the free Canon Camera Connect app. Simply connect to the Camera Connect app where you can browse, or download images to your smart device, then share and upload from the device directly to various social media sites and web services. For professional photographers using the EOS R5 camera, the built-in Wi-Fiis the ideal feature that is needed for quick wireless connectivity.
^ Compatible with iOSversions 9.3/10.3/11.2-11.4/12.4/13.2, Android smartphone andtablet versions 5.0/5.1/6.0/7.0/7.1/8.0/8.1/9.0/10. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.

Bluetooth^^Capability

Bluetooth^^connectivity offers continuous connection, and allows the EOS R5 camera to automatically connect to a smart device that is paired with the Canon Camera Connect app. This allows a number of functions from easy image transfer to remote shooting, to adding GPS*3information to your photos and videos and more.
^^Compatible with select smartphone and tablet devices (Android version 5.0 or later and the following iOSdevices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen. or later) equipped with Bluetoothversion 4.1 or later and the Camera Connect App Ver. 2.5.10. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.
*3In certain countries and regions, the use of GPS may be restricted. Therefore, be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.

Image.Canon Service

image.canon is a cloud service designed to ease your imaging workflow, whether you are a professional, enthusiast, or casual user. Connecting the EOS R5 camera to the image.canon service will allow photographers to seamlessly upload all images and movies in their original format and quality, and access them from the dedicated app or through a web browser and automatically forward them to a computer, mobile device, and third party services.

Multi-controller Customization

Designed to allow users to operate customizable camera functions while looking through the optical viewfinder, the EOS R5 camera features a multi-controller button located on the back of the camera that makes it easy for the user to locate and control.

Main Dial and Quick Main Dials1 & 2

With its compact body size, the EOS R5 camera features a three dial User Interface in the main dial, quick control dial 1 and quick control dial 2 which provide direct control over the traditional exposure controls such as Shutter Speed, Aperture, and ISO and are fully customizable to the users preference.

Wireless File Transmitter R10-A

The optional Wireless File Transmitter WFT-R10A, which also serves as a vertical battery grip, provides both a fast through put for image uploading and several features that make dynamic wireless photography simple and fast. It has 5 GHz 802.11ac support for high-speed image transfer, a user interface that enables speedy set-up and configuration of wireless networks and even compatible smartphone connection. The Wireless File Transmitter WFT-R10A makes it simple to use a compatible smartphone as a remote control for still and video capture even from a far distance. It can even transfer recorded images back for viewing on the device’s screen.

Battery Grip

The EOS R5 cameras optional Battery Grip BG-R10 holds 2 Battery Packs LP-E6NH, while enabling virtually seamless vertical and horizontal operation and additional functions with all buttons similarly configured in a comfortable and dedicated grip. The Battery Grip BG-R10 also has a useful battery charging function (with optional USB power delivery adapter attached) thats particularly helpful for power-hungry operations like video recording or shooting over an extended period of time.

High-Capacity Battery PackLP-E6NH

For increased power and the convenience of compatibility among multiple cameras, the EOS R5 camera uses Battery Packs LP-E6NH, the same batteries used on the EOS R camera and others. Especially helpful for photographers with multiple EOS cameras, the Battery Pack LP-E6NHis a robust,long-lasting battery that helps deliver power, shot after shot.

Magnesium Body

Comfortable and solid in the hand, the EOS R5 camera features a rigid yet lightweight magnesium alloy chassis that enhances body durability while shielding the camera from electromagnetic radiation and heat. It also has a tempered front panel for internal rigidity.

Shutter Durability

The EOS R5 camera has a durability rated at approx. 500,000 cycles and full-frame focal-plane shutter that offers approx. 12 shots/sec.

Dust-& Water-resistant Sealing

The EOS R5 camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas like the buttons, terminal covers, the battery compartment and the card slot cover. Precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body. Combined with an RF lens, or any other weather-sealed EF/EF-S lens, the EOS R5 camera proves to be a reliable partner in virtually any climate.

Specifications

Specifications

Type

Digital single-lens non-reflex AF/AE camera

Recording Media

CFexpress card

• Type B: Card slot
• SD card speed class-compatible

SD card

• Compatible with UHS-II
• Eye-Fi cards and Multimedia cards (MMC) are not supported.

Compatible Lenses

Canon RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Lens Mount

Canon RF mount

Image Sensor

Type

CMOS sensor (compatible with Dual Pixel CMOS AF)

Effective pixels

Approx. 45.0 megapixels

Pixel Unit

Approx. 4.40 m square

Total Pixels

Approx. 47.1 megapixels

Aspect Ratio

3:2 (Horizontal:Vertical)

Color Filter System

RGB primary color filters

Low Pass Filter

Installed in front of the image sensor, non-detachable

Dust Deletion Feature

1. Self Cleaning Sensor Unit
   • Removes dust adhering to the low-pass filter.
   • At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indi-cated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen).
   • After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
   • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
2. Dust Delete Data acquisition and appending
   • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
   • The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software (v. 4.14 and higher) to automatically erase the dust spots.
   • Not available with EF-S lenses, in cropped shooting or multi-exposure shooting.
3. Manual cleaning (by hand)

Recording Format

Compliant to Design rule for Camera File system 2.0 and Exif 2.3*.
*Supports time difference information in Exif 2.31.

File Size

3:2 Aspect Ratio
Large/RAW/C-RAW: 8192 x 5464
Medium: 5808 x 3872
Small 1: 4176 x 2784
Small 1: 2976 x 1984
Small 2: 2400 x 1600

1.6x (Crop)*
Large/RAW/C-RAW: 5088 x 3392
Small 2: 2400 x 1600

4:3 Aspect Ratio
Large: 7280 x 5464
Medium: 5152 x 3872
Small 1: 3712 x 2784
Small 2: 2112 x 1600
RAW/C-RAW: 8192 x 5464

16:9 Aspect Ratio
Large: 8192 x 4608
Medium: 5808 x 3264
Small 1: 4176 x 2344
Small 2: 2400 x 1344
RAW/C-RAW: 8192 x 5464

1:1 Aspect Ratio
Large: 5456 x 5456
Medium: 3872 x 3872
Small 1: 2784 x 2784
Small 2: 1600 x 1600
RAW/C-RAW: 8192 x 5464

• Values for Recording Pixels are rounded to the nearest 100,000 or 10,000.
• For RAW and JPEG images, information outside the cropping area is not retained.
• JPEG images are generated in the set aspect ratio.
• RAW images are generated in [3:2], and the set aspect ratio is appended.

* Indicate an inexact proportion.

File Numbering

The following file numbers can be set:

1. File numbering methods
   • Continuous numbering
     • The numbering of captured images continues even after you replace the card.
   • Auto reset
     • When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
2. Manual reset

• Resets the file number to 0001, and creates a new folder automatically.

*When manually resetting the file number, folders can also be renamed.

RAW + JPEG Simultaneous Recording / HEIF Simultaneous Recording

Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.

Color Space

Selectable between sRGB and Adobe RGB

Picture Style

1. Auto
2. Standard
3. Portrait
4. Landscape
5. Fine Detail
6. Neutral
7. Faithful
8. Monochrome
9. User Defined 1-3
   • In Scene Intelligent Auto, [Auto] will be set automatically.
   • [Standard] is the default setting for [User Def. 1-3].

White Balance

Settings

1. Auto
2. Day Light
3. Shade
4. Cloudy*
5. Tungsten light
6. White fluorescent light
7. Flash
8. Custom (Custom WB)
9. Color temperature

* Effective also in twilight and sunset.

Auto White Balance

Option between ambience priority and white priority settings.

Color Temperature Compensation

Blue/amber bias: 9 levels
Magenta/green bias: 9 levels
Corrected in reference to the current WB mode’s color temperature.

Viewfinder

Type

OLED color electronic viewfinder; approx. 5.76 million dots resolution

Coverage

Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).

Magnification / Angle of View

Approx. 0.76x / Approx. 35.5 degrees (with 50mm lens at infinity, -1 m-1)

Eye Point

Approx. 23mm (at -1 m-1from the eyepiece lens end)

Viewfinder Information

1. Maximum burst
2. Possible shots/Sec. until self-timer shoots
3. Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
4. Shooting mode
5. AF method
6. AF operation
7. Image quality
8. Card
9. Drive mode
10. Metering mode
11. No. of remaining shots for focus bracketing, multiple exposures, or interval time
